    顺络功率电感规格书
    时间：2022-05-09
    产品照片类别电感额定电流尺寸代码系列目录S参数
    Multilayer/High Q0.2 to 33nH90 to 320mA0402
    [01005 inch]    		SDCL0402H-01SDCL0402H-01 PDF2021.06.10SDCL0402H-012020.04.08
    Multilayer/High Q0.6 to 120nH80 to 850mA0603
    [0201 inch]    		SDCL0603Q-02B03SDCL0603Q-02B03 PDF2021.06.10
    Multilayer/STD0.6 to 360nH50 to 800mA1005
    [0402 inch]    		SDCL1005CSDCL-D PDF2021.09.08SDCL-D2020.04.08
    1.0 to 470nH150 to 500mA1608
    [0603 inch]    		SDCL1608C
    Multilayer/High Q0.2 to 33nH120 to 990mA0402
    [01005 inch]    		HQ0402HHQ-H PDF2021.06.10HQ-H2020.04.08
    0.6 to 47nH130 to 1000mA0603
    [0201 inch]    		HQ0603H
    0.2 to 56nH100 to 1000mA0402
    [01005 inch]    		HQ0402QHQ-Q PDF2021.06.10
    0.6 to 150nH80 to 1100mA0603
    [0201 inch]    		HQ0603Q
    Multilayer/Supper Q0.2 to 20nH140 to 990mA0402
    [01005 inch]    		UHQ0402HUHQ PDF2021.06.10
    Multilayer/High Q1.0 to 15nH430 to 1000mA1005
    [0402 inch]    		HQ1005HQ PDF2020.07.07Not RecommendedHQ2020.04.08
    Multilayer/High SRF1.0 to 100nH100 to 500mA1005
    [0402 inch]    		SDHL1005SDHL PDF2021.06.10SDHL2020.04.08
    10 to 180nH150 to 500mA1608
    [0603 inch]    		SDHL1608
    Wire Wound/STD1.0 to 15nH230 to 900mA0.53×0.4×0.4MWSD0603CMWSD-C PDF2021.09.08MWSD-C2020.04.08
    0.8 to 56nH130 to 1800mA0.8×0.4×0.4MWSD0804C
    0.8 to 120nH110 to 1000mA1.1×0.6×0.55MWSD1005C
    1.6 to 560nH70 to 1150mA1.6×0.9×0.9MWSD1608C
    Wire Wound1.5 to 120nH110 to 1000mA1005
    [0402 inch]    		MWSD1005C-M01MWSD-C-M PDF2021.06.11MWSD1005C-M2020.04.08
    1.3 to 5.6nH800 to 1200mA1005
    [0402 inch]    		MWSD1005C-M11
    2.2 to 470nH75 to 700mA1608
    [0603 inch]    		MWSD1608C-M01
    1.3 to 75nH320 to 3150mA1005
    [0402 inch]    		MWSD1005C-M8XMWSD-C-M8X PDF2021.09.08
    2.2 to 390nH190 to 3200mA1608
    [0603 inch]    		MWSD1608C-M8X
    1.0 to 51nH360 to 2300mA1005
    [0402 inch]    		MWSD1005-CPMWSD-CP/CH PDF2021.06.11
    56 to 220nH160 to 330mA1005
    [0402 inch]    		MWSD1005-CH
    Wire Wound/STD1.6 to 560nH70 to 1150mA1608
    [0603 inch]    		SDWL1608CSDWL-C PDF2021.06.10SDWL-C2020.04.08
    2.2 to 4700nH30 to 600mA2012
    [0805 inch]    		SDWL2012C
    3.6 to 22000nH70 to 1000mA2520
    [1008 inch]    		SDWL2520C
    3.3 to 1200nH300 to1000mA3216
    [1206 inch]    		SDWL3216C
    3.9 to 22000nH100 to 1000mA3225
    [1210 inch]    		SDWL3225C
    24 to 33000nH145 to 1000mA4532
    [1812 inch]    		SDWL4532C
    Wire Wound2.2 to 470nH75 to 700mA1608
    [0603 inch]    		SDWL1608C-M01SDWL-C-M PDF2021.06.10SDWL-C-M2020.04.08
    2.2 to 33nH550 to 1400mA1608
    [0603 inch]    		SDWL1608C-M11
    Wire Wound1.6 to 390nH100 to 700mA1608
    [0603 inch]    		SDWL1608C-N01SDWL-C-N PDF2021.06.10SDWL-C-N2020.04.08
    Lower DCR and Hight Q1.8 to 390nH170 to 2100mA1608
    [0603 inch]    		SDWL1608-CPSDWL-CP PDF2021.06.10SDWL-CP2020.04.08
    2.6 to 820nH180 to 2000mA2012
    [0805 inch]    		SDWL2012-CP

    一般信号线用

    产品照片类别电感额定电流尺寸代码系列目录
    Multilayer/STD0.047 to 3.3μH10 to 25mA1005
    [0402 inch]    		SDFL1005SDFL PDF2021.06.10
    0.047 to 33μH1 to 50mA1608
    [0603 inch]    		SDFL1608
    0.047 to 47μH4 to 300mA2012
    [0805 inch]    		SDFL2012
    0.047 to 47μH5 to 300mA3216
    [1206 inch]    		SDFL3216
    Wire Wound0.0049 to 22μH70 to 2600mA1608 0603 inchWL1608FSWL-FS PDF2021.06.10
    Wire Wound33 to 200nH110 to 340mA0.53×0.4×0.4MWSD0603FMWSD-F PDF2021.06.10
    27 to 560nH90 to 480mA0.76×0.43×0.57MWDS0703F
    22 to 2200nH170 to 1600mA1.1×0.6×0.55MWSD1005F
    18 to 2200nH170 to 2200mA1.1×0.6×0.55MWSD1005F-M01
    51 to 22000nH70 to 1050mA1.6×0.8×0.8MWSD1608F
    2.2 to 47μH100 to 580mA1608
    [0603 inch]    		MWSD-FEMWSD-FE PDF2021.08.19
    2.2 to 22μH340 to 1040mA2012
    [0805 inch]
    Wire Wound/STD0.27 to 68μH40 to 350mA2012
    [0805 inch]    		SDWL2012FWSDWL-FW PDF2021.06.10
    0.33 to 10μH300 to 700mA2520
    [1008 inch]    		SDWL2520FW
    1.5 to 18μH130 to 320mA3216
    [1206 inch]    		SDWL3216FW
    0.12 to12μH140 to 450mA3225
    [1210 inch]    		SDWL3225FW
    Wire Wound3.7μH/5.5×2.0×2.0
    6.2×3.0×2.0
    6.2×4.0×2.0    		MTNFMTNF PDF 2021.06.10

    电源线用

    产品照片类别电感额定电流尺寸代码系列目录
    Multilayer/STD, For Choke0.1 to 10μH50 to 700mA1608
    [0603 inch]    		MCL1608MCL PDF2021.06.10
    0.1 to 10μH60 to 1000mA2012
    [0805 inch]    		MCL2012
    Multilayer For NFC0.077 to 0.56μH250 to 550mA1005
    [0402 inch]    		MCL1005NMCL-N PDF2021.06.10
    0.077 to 0.82μH400 to 1100mA1608
    [0603 inch]    		MCL1608N
    Multilayer/STD0.22 to 4.7μH65 to 1200mA1608
    [0603 inch]    		MPH1608MPH PDF2022.05.07
    0.22 to 10 μH110 to 1200mA2012
    [0805 inch]    		MPH2012
    0.47 to 10μH200 to 1500mA2016
    [0806 inch]    		MPH2016
    0.47 to 10μH250 to 2100mA2520
    [1008 inch]    		MPH2520
    Multilayer/STD1.0 to 4.7μH180 to 450mA2012
    [0805 inch]    		MCL2012AMCL-A PDF2022.05.07
    1.0 to 4.7μH100 to 900mA2016
    [0806 inch]    		MCL2016A
    1.5 to 4.7μH250 to 600mA2520
    [1008 inch]    		MCL2520A
    Wire Wound SMD Power Inductors0.11 to 1.0μH3.1 to 9.6A2.0×1.25×1.0WPG201210UFWPG PDF2021.06.10
    0.24 to 2.2μH2.7 to 6.5A2.0×1.25×1.0WPG201610UF
    0.24 to 4.7μH1.65 to 9.0A2.5×2.0×1.0WPG252010UF
    Magnetic Shielded(Large Isat)0.24 to 10μH2.8 to 4.8A2.0×1.2×1.0

    WPN201210UFNot Recommended

    		WPN PDF 2021.11.19
    0.47 to 1.0μH2.8 to 4.6A2.0×1.6×0.8

    WPN201608UFNot Recommended

    0.12 to 10μH0.80 to 9.5A2.0×1.6×1.0

    WPN201610H/

    WPN201610M/

    WPN201610U/

    WPN201610HS/

    WPN201610UFNot Recommended

    0.24 to 2.2μH1.70 to 5.85A2.0×1.6×1.2

    WPN201612HNot Recommended

    0.16 to 10μH0.90 to 10.4A2.5×2.0×1.0

    WPN252010H/

    WPN252010U/

    WPN252010F/

    WPN252010HS/

    WPN252010UFNot Recommended

    0.24 to 10μH1.10 to 8A2.5×2.0×1.2WPN252012H/
    WPN252012E/
    WPN252012HS
    10μH1A3.0×3.0×1.0WPN3010HS
    0.33 to 15μH1.2 to 7.2A3.0×3.0×1.2WPN3012H/
    WPN3012HS
    10μH1.4μH4.0×4.0×1.0WPN4010HS
    0.33 to 22μH1.05 to 10.30A4.0×4.0×1.2WPN4012H/WPN4012HS
    0.22 to 10μH2.8 to 18.7A4.0×4.0×2.0WPN4020H
    Wire Wound/Shielded Type with Magnetic Glue, Low DCR0.16 to 10μH0.50 to 4.30A2.0×1.6×1.0SPH201610HSPH PDF2022.05.07
    0.05 to 2.2μH1.1 to 7.50A2.0×1.6×1.0SPH201610U
    0.24 to 33μH0.25 to 3.60A2.5×2.0×1.0SPH252010H
    0.16 to 100μH0.22 to 6.50A2.5×2.0×1.2SPH252012H
    4.7 to 22μH0.40 to 0.85A3.0×3.0×1.0SPH3010H
    1.0 to 22μH0.50 to 2.20A3.0×3.0×1.2SPH3012H
    0.1 to 100μH0.23 to 4.6 A3.0×3.0×1.5SPH3015H
    0.33 to 100μH0.25 to 2.80A4.0×4.0×1.2SPH4012H
    0.33 to 330μH0.26 to 6.50A4.0×4.0×1.8SPH4018H
    0.33μH7.50A4.0×4.0×2.0SPH4020H
    0.10 to 0.47μH8.2 to 17.0A4.0×4.0×3.0SPH4030H
    Wire Wound/STD, Shielded Type with Magnetic Glue0.47 to 10μH0.65 to 2.5A2.5×2.0×1.0SWPA252010SSWPA PDF2022.04.06
    0.47 to 22μH0.53 to 3.82A2.5×2.0×1.2SWPA252012S
    1.0 to 56μH0.21 to 1.40A3.0×3.0×1.0SWPA3010S
    0.22 to 100μH0.21 to 5.30A3.0×3.0×1.2SWPA3012S
    0.5 to 150μH0.18 to 3.9A3.0×3.0×1.5SWPA3015S
    1.0 to 22μH0.45 to 2.0A4.0×4.0×1.0SWPA4010S
    0.82 to 100μH0.25 to 3.02A4.0×4.0×1.2SWPA4012S
    0.47 to 220μH0.27 to 4.3A4.0×4.0×1.8SWPA4018S
    0.24 to 100μH0.48 to 10.5A4.0×4.0×2.0SWPA4020S
    1.0 to 330μH0.40 to 3.30A4.0×4.0×2.6

    SWPA4026SNot Recommended

    0.47 to 680μH0.19 to 5.20A4.0×4.0×3.0SWPA4030S
    1 to 22μH0.88 to 4.4A5.0×5.0×1.2SWPA5012S
    0.22 to 200μH0.30 to 9A5.0×5.0×2.0SWPA5020S
    0.22 to 680μH0.3 to 18A5.0×5.0×4.0SWPA5040S
    1.5 to 22μH2.0 to 7.4A5.0×5.0×4.5SWPA5045S
    1.0 to 100μH0.32 to 3.52A6.0×6.0×1.2SWPA6012S
    0.5 to 47μH0.7 to 4.50A6.0×6.0×2.0SWPA6020S
    0.82 to 400μH0.30 to 6.50A6.0×6.0×2.8SWPA6028S
    0.47 to 680μH0.42 to 15.0A6.0×6.0×4.5SWPA6045S
    0.82 to 470μH0.60 to 13.8A8.0×8.0×4.0SWPA8040S
    680μH0.72A8.0×8.0×6.0SWPA8060S
    1.0 to 430μH0.95 to 20.0A8.0×8.0×6.5SWPA8065S
    Wire Wound, Shielded Type22 to 100nH17 to 40A4.1×4.0×4.0WPZ04044S1WPZ PDF2022.05.07
    55 to 150nH25 to 70A5.2×5.2×6.5WPZ05057S1
    100 to 200nH25 to 50A6.4×6.4×5.3WPZ06065S1
    100nH20A7.3×6.8×4.2WPZ07074N1
    60 to 100nH34 to 51A7.3×6.8×3.8WPZ07074S1
    60 to 150nH34 to 70A7.0×7.0×5.0WPZ07075S1
    100 to 300nH32.5 to 94A9.6×6.4×8.1WPZ09068S1
    70 to 280nH36 to 145A9.6×6.6×10.1WPZ0906AB1
    70 to 280nH30 to 120A9.6×6.4×10.1WPZ0906AS1
    70 to 280nH31 to 123A9.6×6.6×10.1WPZ0906AF1
    70 to 175nH28 to 78A9.5×7.5×4.0WPZ09074S1
    70nH100A9.6×7.0×5.5WPZ09075S1
    100 to 300nH26 to 80A9.5×7.5×9.0WPZ09079S1
    75nH70A10.2×4.0×2.4WPZ10042M1
    85nH80A10.2×4.0×3.5WPZ10043M1
    70 to 330nH35 to 175A10.0×6.0×12.0WPZ1006CB1
    70 to 330nH31 to 158A10.0×6.15×12.0WPZ1006CF1
    70 to 330nH30 to 152A10.0×6.15×12.0WPZ1006CS1
    120 to 300nH21 to 61A10.2×7.0×5.0WPZ10075B1
    70 to 300nH19 to 85A10.25×7.0×5.2WPZ10075S1
    70 to 160nH60 to 130A10.7×7.0×5.0WPZ10075M1
    70 to 330nH37 to 165A10.0×7.0×10.0WPZ1007AS1
    100 to 330nH28 to 96A10.3×8.0×7.0WPZ10087S1
    100 to 300nH35 to 108A10.4×8.0×7.5WPZ10087B1
    80 to 300nH33 to 130A10.4×8.0×8.2WPZ10088S1
    100 to 300nH26 to 79A10.0×10.0×3.35WPZ10103S1
    100 to 500nH26 to 120A10.0×10.0×6.0WPZ10106S1
    100 to 200nH45 to 90A10.6×6.3×8.1WPZ11068S1
    70 to 510nH18 to 150A11.0×7.4×7.7WPZ11077S1
    110 to 320nH22 to 65A13.55×8.55×3.0WPZ13083S1
    110 to 500nH25 to 140A13.7×12.8×8.1WPZ13138S1
    160nH55A15.3×11.3×3.0WPZ16123S1
    250nH30A18.0×11.4×3.0WPZ18113S1
    Wire Wound Molded SMD Power Inductors0.33 to 1.0μH7.2 to 14A4.0×4.0×1.5WTH0415TWT PDF 2021.06.10
    0.33 to 3.3μH4.7 to 15.7A4.0×4.0×2.1WTX0420T
    0.33 to 6.8μH4.1 to 18.8A4.0×4.0×3.1WTX0430T

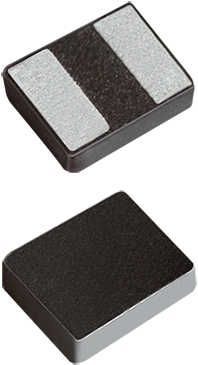

    Wire Wound
    (Mini Molded)    		0.33 to 0.47uH3 to 5.0A1.4×1.2×0.65MWTC1412065MWTC PDF 2022.05.07
    0.24 to 0.47μH4.0 to 6.5A1.4×1.2×0.8MWTC141208
    0.11 to 2.2μH1.9 to 10A2.0×1.2×0.8MWTC201208
    0.24 to 2.2μH2.1 to 6.2A2.0×1.2×1.0MWTC201210
    0.24 to 2.2μH2.3 to 5.7A2.0×1.6×0.8MWTC201608
    0.24 to 4.7μH1.6 to 7.0A2.0×1.6×1.0MWTC201610
    1 to 10μH1.2 to 3.5A2.5×2.0×0.8MWTC252008
    0.47 to 4.7μH1.9 to 6.0A2.5×2.0×1.0MWTC252010
    Wire Wound/STD, Magnetic Shielded1.0 to 330μH0.50 to 7.0A12.5×12.5×5.0SWRB1204SSWRB-S PDF2021.06.10
    1.0 to 680μH0.48 to 8.0A12.5×12.5×6.0SWRB1205S
    1.0 to 1000μH0.55 to 10.0A12.5×12.5×8.0SWRB1207S
    Wire Wound/STD, Magnetic Shielded3.3 to 330μH0.19 to 1.94A7.0×6.8×3.0SWRH0602BSWRH-B PDF2022.05.07
    10 to 470μH0.20 to 1.35A7.0×6.8×5.0SWRH0604B
    2.2 to 560μH0.22 to 3.0A7.8×7.8×4.0SWRH0703B
    10 to 560μH0.23 to 1.84A7.8×7.8×5.0SWRH0704B
    2.2 to 470μH0.36 to 4.0A10.5×10.5×5.0SWRH1004B
    1.0 to 470μH0.25 to 7.0A12.5×12.5×5.0SWRH1204B
    1.0 to 1000μH0.40 to 8.0A12.5×12.5×6.0SWRH1205B
    1.0 to 1000μH0.55 to 10.0A12.5×12.5×8.0SWRH1207B
    Wire Wound/STD, Magnetic Shielded1.0 to 1000μH0.23 to 6.50A10.6×10.5×3.0SWRH1003CSWRH-C PDF2021.06.10
    1.5 to 330μH0.52 to 6.50A10.6×10.5×4.0SWRH1004C
    3.3 to 820μH0.48 to 6.0A10.6×10.5×5.2SWRH1005C
    Wire Wound/STD, Magnetic Shielded2.5 to 100μH0.75 to 4.50A10.1×8.3×3.0SWRH8D28CSWRH-DC PDF2021.06.10
    1.5 to 100μH0.88 to 6.0A10.1×8.3×4.0SWRH8D38C
    2.0 to 100μH0.80 to 5.50A10.1×8.3×4.5SWRH8D43C
    Wire Wound/STD, Magnetic Shielded1.2 to 10μH0.35 to 0.90A3.3×3.3×1.3SWRH2D11RSWRH-DR PDF2022.03.29
    1.5 to 12μH0.62 to 1.80A3.3×3.3×1.6SWRH2D14R
    22.2 to 47μH0.20 to 0.85A3.3×3.3×2.1SWRH2D18R
    22.7 to 39μH0.14 to 0.50A4.2×4.2×1.3SWRH3D11R
    1.5 to 22μH0.52 to 1.85A4.2×4.2×1.6SWRH3D14R
    1.5 to 33μH0.32 to 1.55A4.2×4.2×1.8SWRH3D16R
    Wire Wound/STD, Magnetic Shielded1.5 to 33μH0.32 to 1.35A4.2×4.2×1.8SWRH3D16SSWRH-DS PDF2021.06.10
    3.3 to 47μH0.35 to 1.45A4.2×4.2×2.1SWRH3D18S
    3.3 to 47μH0.48 to 2.0A4.2×4.2×3.2SWRH3D28S
    1.0 to 150μH0.15 to 1.72A5.0×5.0×2.0SWRH4D18S
    11.0 to 150μH0.24 to 2.60A5.0×5.0×3.0SWRH4D28S
    3.3 to 150μH0.31 to 2.0A6.0×6.0×2.0SWRH5D18S
    2.2 to330μH0.25 to 2.60A6.0×6.0×3.0SWRH5D28S
    3.3 to 1000μH0.14 to 2.80A7.0×7.0×3.0SWRH6D28S
    1.5 to 1000μH0.20 to 5.20A7.0×7.0×4.0SWRH6D38S
